JET 3D SCAN & DESIGN

While it’s not unusual for a Fabrication business to have draughting capabilities, a Fabrication business with full design capabilities is a different story. JET 3D Scan & Design specialise in advanced 3D laser scanning, reverse engineering and modelling. We accurately and efficiently capture existing data, draught, design and engineer innovative and often complex products that improve our customers safety, aids work efficiency and lowers production cost.

When it comes to design and draughting our philosophy is to do as much work as possible on the computer screen, thereby minimising the man hours required during manufacture, and reducing the potential for mistakes and rework.

DESIGN:

  • Mechanical & Structural Design
  • Hydraulic Equipment/ Circuit Design
  • RPEQ Certification
  • Static Stress Finite Analysis (FEA)
  • Meet required codes & Australian Standards

DRAUGHTING:

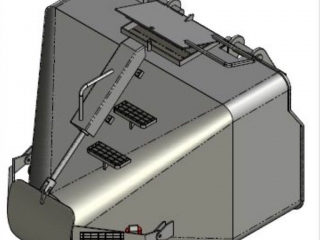

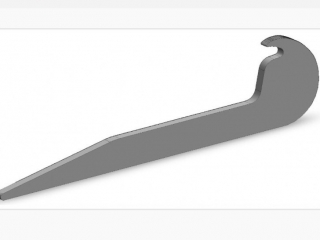

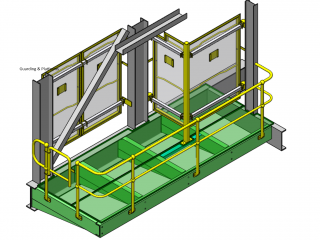

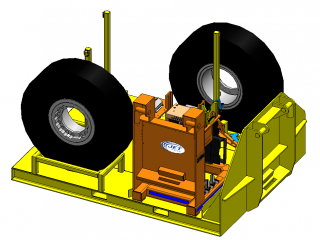

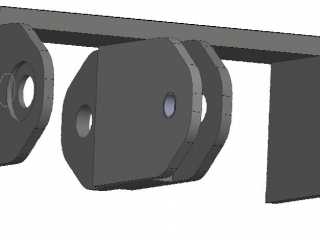

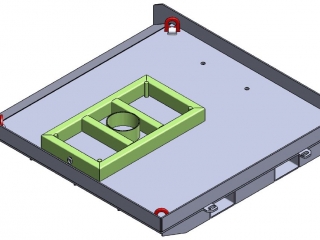

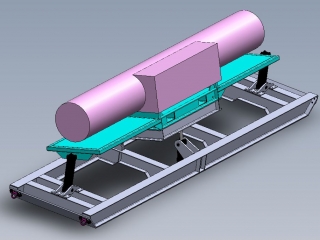

  • 3d CAD Modelling
  • Mechanical
  • Structural
  • Piping
  • Hydraulic Schematics
  • Reverse Engineering

3D SCANNING:

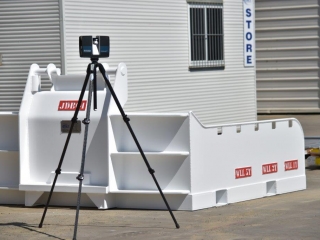

  • Onsite 3D Scanning Long Range
  • 3D Scan Post Processing
  • Fast data collection
  • High Accuracy Measures inaccessible & complex geometry
